ROHM offers SiC Schottky barrier diodes for high-voltage xEV systems

The rapidly expanding xEV market is driving the demand for power semiconductors, among them SiC SBDs, that provide low heat generation, along with high-speed switching and high-voltage capabilities in applications such as onboard chargers.

author-image
DQI Bureau
New Update
ROHM xEV systems
Listen to this article
0.75x 1x 1.5x
00:00 / 00:00

ROHM has developed surface mount SiC Schottky barrier diodes (SBDs) that improve insulation resistance by increasing the creepage distance between terminals.

Advertisment

The initial lineup includes eight models - SCS2xxxNHR - for automotive applications such as onboard chargers (OBCs), with plans to deploy eight models. SCS2xxxN - for industrial equipment such as FA devices and PV inverters in December 2024.

The rapidly expanding xEV market is driving the demand for power semiconductors, among them SiC SBDs, that provide low heat generation along with high-speed switching and high-voltage capabilities in applications such as onboard chargers.

Additionally, manufacturers increasingly rely on compact surface mount devices (SMDs) compatible with automated assembly equipment to boost manufacturing efficiency. Compact SMDs tend to typically feature smaller creepage distances, fact that makes high-voltage tracking prevention a critical design challenge.

Advertisment

As leading SiC supplier, ROHM has been working to develop high-performance SiC SBDs that offer breakdown voltages suitable for high-voltage applications with ease of mounting. Adopting an optimized package shape, it achieves a minimum creepage distance of 5.1mm, improving insulation performance when contrasted with standard products.

ROHM has been working to develop high-performance SiC SBDs that offer breakdown voltages suitable for high-voltage applications with ease of mounting. Adopting an optimized package shape, it achieves a minimum creepage distance of 5.1mm, improving insulation performance, when contrasted with standard products.

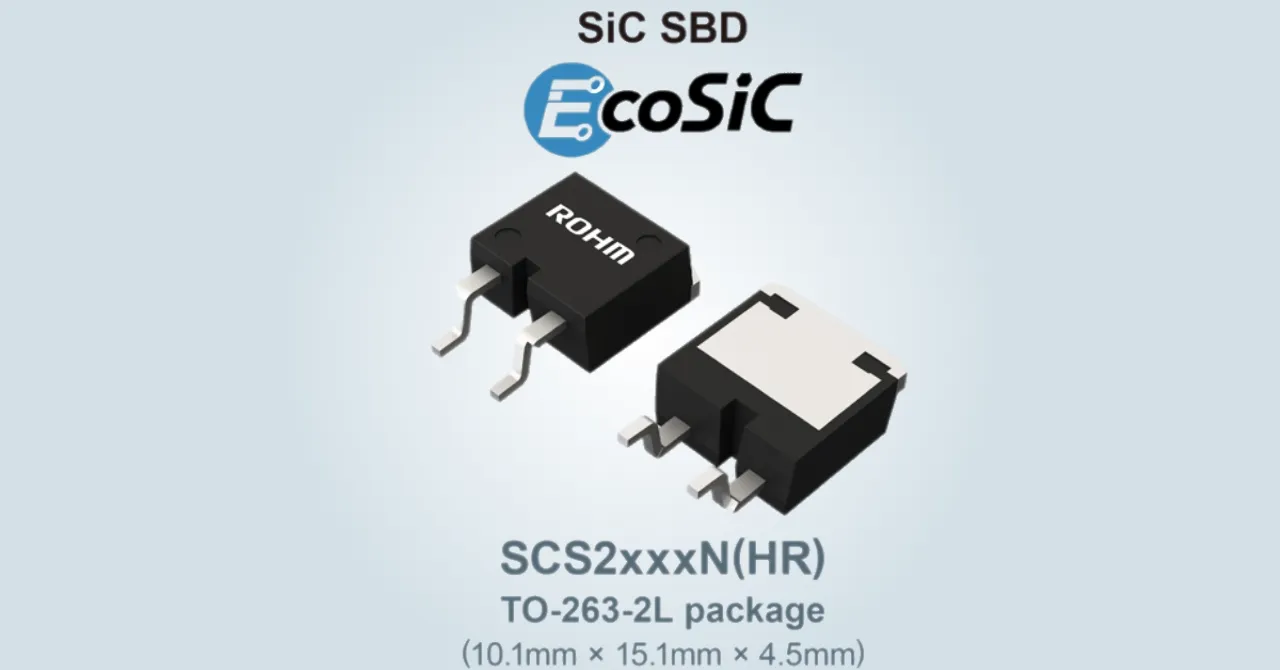

The new products utilize an original design that removes the center pin previously located at the bottom of the package, extending the creepage distance to a minimum of 5.1mm,
approx. 1.3 times greater than standard products. This minimizes the possibility of tracking (creepage discharge) between terminals, eliminating the need for insulation treatment via resin potting, when surface mounting the device on circuit boards in high voltage applications.

Advertisment

Additionally, the devices can be mounted on the same land pattern as standard and conventional TO-263 package products, allowing an easy replacement on existing circuit
boards.

Two voltage ratings are offered, 650V and 1200V, supporting 400V systems commonly used in xEVs, as well as higher voltage systems expected to gain wider adoption in the future. The automotive-grade SCS2xxxNHR are AEC-Q101 qualified, ensuring they meet the high reliability standards this application sector demands.
